WH slider coupling

產品型號：WH

標準編號：JB/ZQ 4384-1997
聯軸器類型：oldham coupling
公稱轉矩：16～5000（N.m）
軸孔：10～100
外形尺寸：40～330
孔徑：10～100
重量：0.6～120（kg）
長度：22～212
外徑：40～330
是否提供加工定制：Yes

產品描述

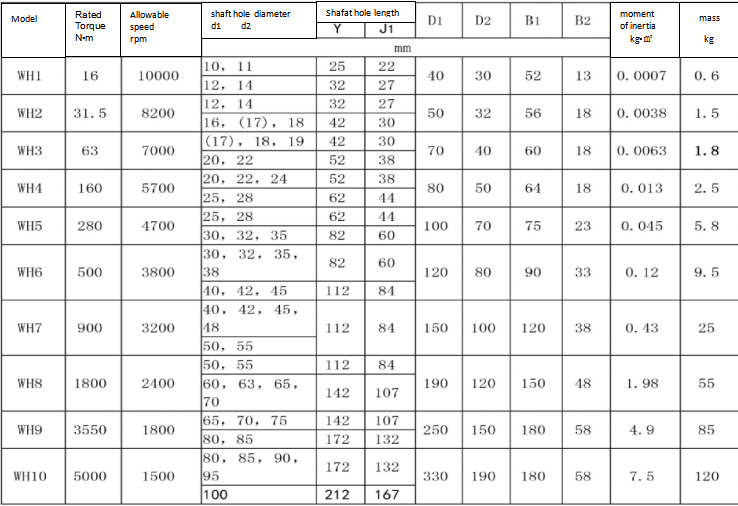

參數詳情

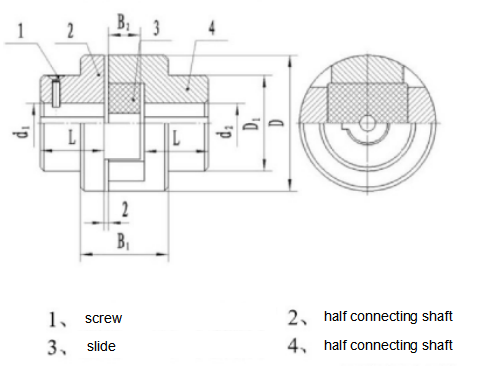

The structure of the slider coupling is similar to that of the cross slider coupling. The difference is that the middle is a square slider. The middle slider is used to slide in the corresponding radial grooves of the half coupling sections on both sides.
Realize the connection of the two half couplings. The coupling is noisy, low in efficiency, and wears quickly. Generally, it is not used as much as possible. It is only used in applications with very low speed, such as ball mills.
